Fire resistant RG6 quad Coaxial Cables

RG6 quad

Applications

RG6 quad coaxial cable are designed for CCTV, security, smoke detection and evacuation monitoring applications, where continued functionality is required during a fi re situation. Due to the zero halogen low smoke construction, this cable is ideal for use in public, commercial and industrial environments.

Standards

MIL-C-17

Fire Performance

Circuit Integrity	IEC 60331-23; BS 6387 CWZ; DIN VDE 0472-814(FE180); CEI 20-36/2-1; SS299-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1)
System circuit integrity	DIN 4102-12, E30 depending on lay system
Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases	NES 02-713; NF C 20-454

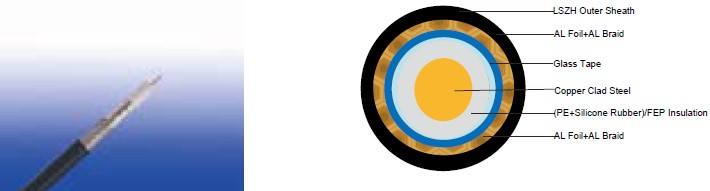

Construction

Conductor	Copper clad steel, solid according to IEC 60228 class 1.
Insulation	PE wrapped with fire resistant silicone rubber compound type EI2 as per BS 7655-1.1 or fluoropolymer(FEP) compound.
Binder	Glass tape
Overall Screen	Screen1: Al-maylar Tape ≥25% Screen2: Aluminium Braid Screen3: Al-maylar Tape ≥25% Screen4: Aluminium Braid
Sheath	Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

Physical and thermal properties

Temperature range during operation (fixed state)	-30°C – +70°C
Temperature range during installation (mobile state)	-5°C – +60°C
Minimum bending radius	8 x Overall Diameter

Electrical properties

Impedance	75±5Ω
Capacitance	67 nF/km
Velocity ratio(%)	66
Insulation resistance	>2000 Mohm.Km
Shield coverage	AL foil(100%)+AL 70%
DC resistance
Max.conductor resistance	24.1Ω/km

Attenuation

Frequency(MHz)	Attenuation (dB/100 m)	Attenuation (dB/100ft)
50	4.8	1.5
100	6.7	2.0
200	9.3	2.8
500	15.0	4.6
600	16.9	5.1
800	19.4	5.9
1000	21.6	6.6
1350	24.2	7.4
1750	28.0	8.4
2150	31.5	9.6
2400	32.8	10.0
3000	37.9	11.5

Dimensions and Weight

Frequency(MHz)	Return Loss (dB)
30-300 MHz	>28dB
300-600 MHz	>24dB
600-900 MHz	>22dB

Dimensions and Weight

Cable Code	Conductor Diameter	Nominal Insulation Diameter	Nominal Screen 2& 4 No.x Diameter	Nominal Overall Diameter	Approx. Weight
	mm	mm	No. x mm	mm	kg/km
RG 6 QUAD	1.02	4.60 ± 0.20	80 x 0.12 64 x 0.12	7.55 ± 0.20	92.4
